| Fifth wheel height: | approx. 1150 mm (example - standard dimensions European standard) |
| Length inside: | approx. 13,520 mm (without moving bulkhead) |
| Inner width: | approx. 2,490 mm |
| Inner height: | approx. 2,675 mm (with a fifth wheel coupling height of 1,150 mm) |
| lateral loading height: | approx. 2505 mm |
| total height: | approx. 4,000 mm (including tarpaulin belts / without tarpaulin tubes) |
| Capacity: | approx. 90.5 m³ |
| Own weight: |
approx. from 7,595 kg |
| (6 x aluminum wheels, aluminum fall supports and incl. 1st axle lift axle) Please note that this vehicle was weighed exactly with the specified basic equipment! |
|
| Total weight: |
35,000 kg Total: 27,000kg |
| axle loads: | 3x 8,000 kg Technical: 3x 9,000 kg |
| fifth wheel load: |
11,000kg Technical: 12,000 kg |
| Chassis: | Lightweight chassis, side members made of high-quality flat steel - Naxtra steel with cut-outs, manufactured in the form of an I-beam and welded to pressed cross members to form a rigid construction. Lasered chassis with recesses for weight reasons. Cross member made of high-strength aluminum press profiles. Replaceable 2" king pin (EG installation dimension, width across corners 2040 mm) |
| Axles: | 3 hollow axles SAF - INTEGRAL, each with a technical load capacity of 9 tons DISC BRAKES with 360mm disc. Axle load gauge wet |
| Suspension: | Air suspension with lifting and lowering device, optional RTR function. |
| Brake system: |
Electronic braking system (Knorr or Wabco) according to EC directives 71/320/ECE R13 with release valve and 2 coupling heads that cannot be interchanged, spring-loaded brakes acting on the last two axles. aluminum air reservoir. RSB program. 2-wire EBS brake system with one membrane brake cylinder per |
| Wheels: | 6 steel disc wheels with 385/65 R22.5 tires. Rim 11.75 x 22.5", 10-hole ET120, silver, make of our choice. |
| Outriggers: | Landing gear with 2 speeds for 24 tons vertical load with thrust compensation, one-side operation. |
| loading bridge: |
Aluminum trough made of 25 mm hollow profiles, front wall 25 mm thick with solid corner posts. with hydraulic piping up to the bulkhead including standard screw coupling. |

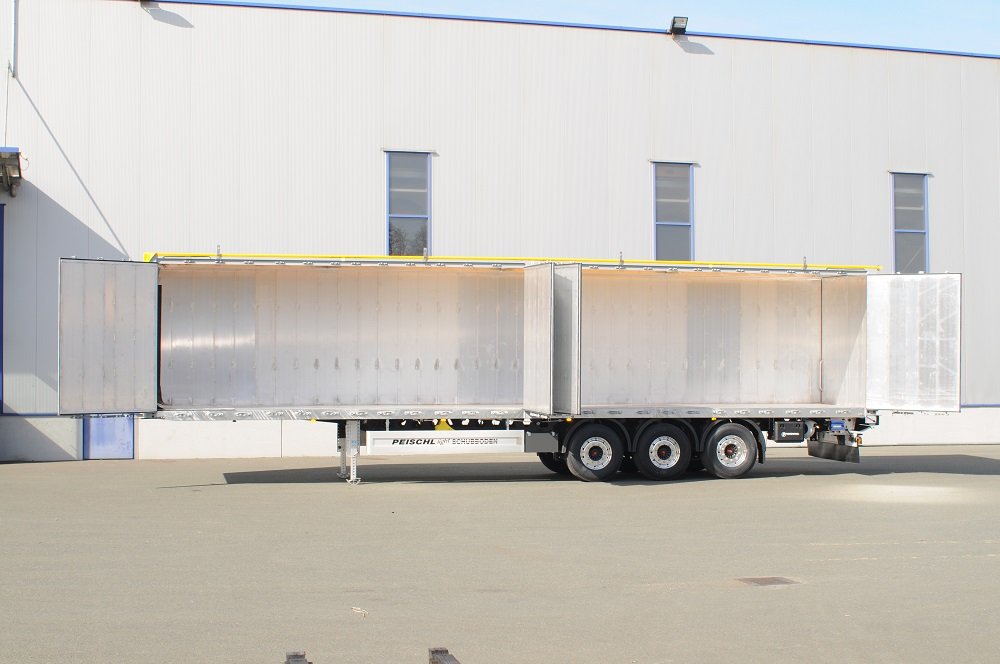

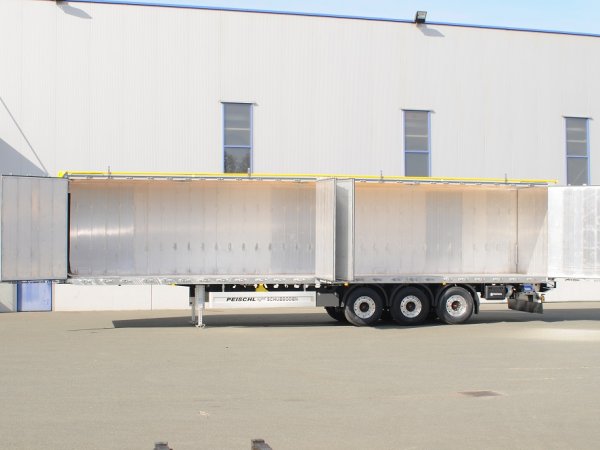

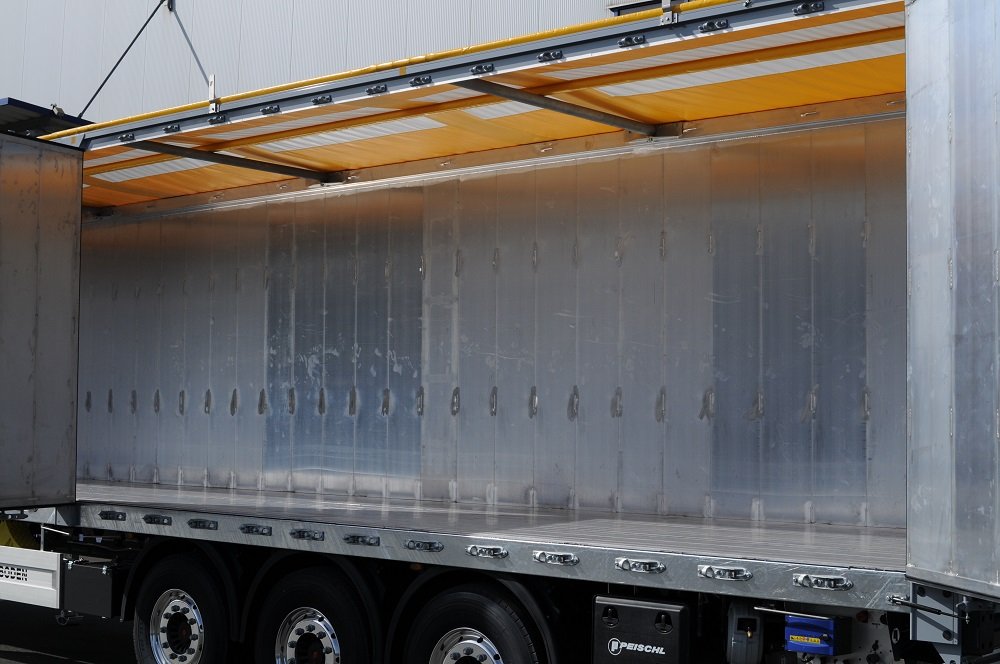

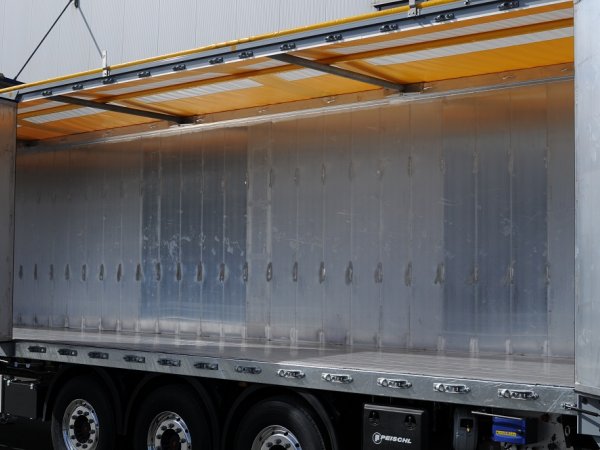

| lateral loading doors: | lateral Loading doors on the entire left side of the vehicle. Vehicle outer frame in galvanized design (hot-dip galvanized). Galvanized cross member (hot-dip galvanised). Doors divided once in the light with a fixed center post. The doors each consist of 2 wings which can be folded again. Version with 3 internal espagnolette locks per door leaf. |
| Lighting system: |
According to STVO EC Directive 76/756/EEC 24 volts, ground-free, tail lights made of 9 chambers Europoint lights, with built-in flashing light, rear fog light and reversing light. Single-line license plate, 2 position lights each, mounted on a rubber arm at the rear, with white reflectors on the front, amber side marker lights, all position lights are based on LEDs. 2 x 7 pin OR 1 x 15 pin power socket |
| Additionally: | 6 pcs. PVC full-shell fenders with splash flaps. 1 piece PVC chock, 1 piece PVC tool box mounted on the left rear corner, lateral. Collision protection aluminum anodized, underride protection aluminum white, 1 piece. open spare wheel holder galvanized, COC documentation. 4 tension belts for roll-up tarpaulin, 4 tarpaulin stops that can be folded over. Roll-up tarpaulin 900 g/m², movable bulkhead incl. special rail cleaner. |
| Paint : |
All steel parts granulated cleaned. Careful priming and spray painting with premium acrylic paint. Left outer frame and cross member, hot-dip galvanized, unpainted. |
| Disclaimer: | All information without guarantee and subject to technical changes and typographical errors. |
